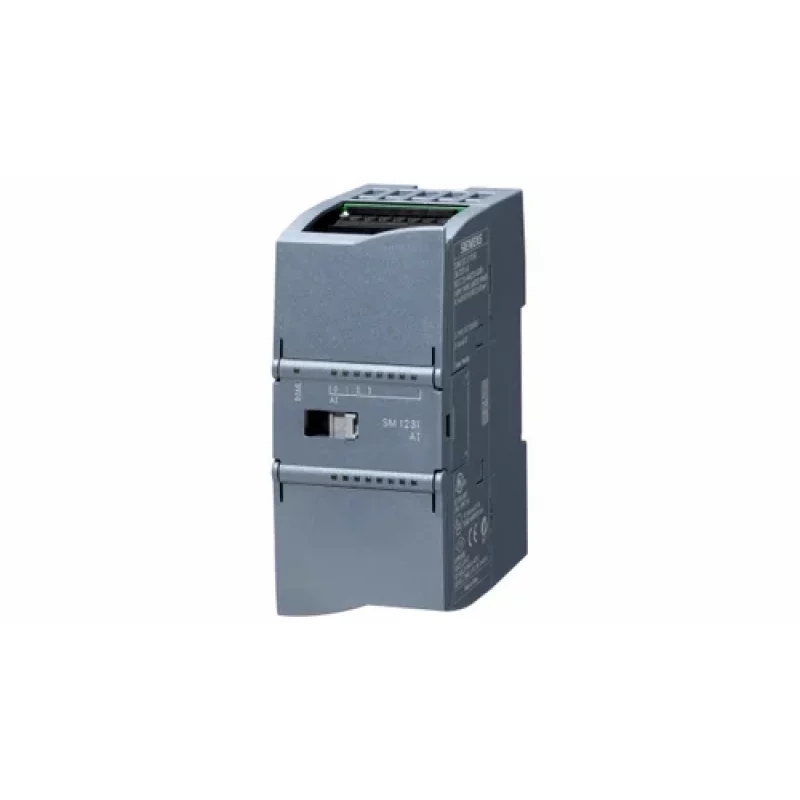

The SM 1231 analog input module for Siemens S7‑1200 PLCs provides 4 high-precision universal inputs, supporting both voltage (0–10 V) and current (4–20 mA) sensor signals. Designed for applications like temperature control, flow measurement, and level monitoring, it ensures accurate and reliable data acquisition with 16-bit resolution and excellent signal stability—even in noisy environments.
Compact and DIN-rail mountable, the module utilizes minimal panel space and features short-circuit protection, wire-break detection, and integrated diagnostics to support safe and maintainable operations. Configured directly through TIA Portal, setting up channel types, scaling, and fault handling is both intuitive and rapid. This plug-and-play design enables seamless compatibility with the S7‑1200 architecture, maintaining synchronized performance and communication.
Available from Scalar Automation in Kenya, this SM 1231 module is well-suited for OEM machines, water/wastewater systems, HVAC processes, and industrial monitoring networks looking for precise analog input performance in a compact and expandable control system.
Product Details:
Number of Channels | 4 |
Brand | Siemens |
Usage/Application | Industrial |
Model Name/Number | 6ES7231-4HD32-0XB0 |
Input Output Control Method | 0-10 VDC or 4-20 mA |
Dimensions W X H X D | 9,00 x 11,10 x 6,00 |
Input Current | 4 input |
Input current ranges | 4-20 mA |
Input Voltage Max | 0-10 VDC |
Maximum High-Level Output Current | 20 ma |
Maximum Low-Level Output Current | 4 ma |

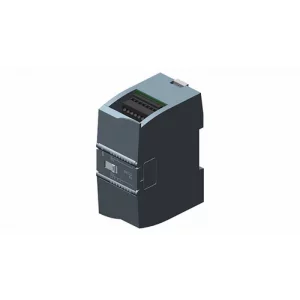

The SIMATIC S7‑1200 SM 1222 (6ES72221XF320XB0) is a compact and powerful digital output module designed to expand th... Continue

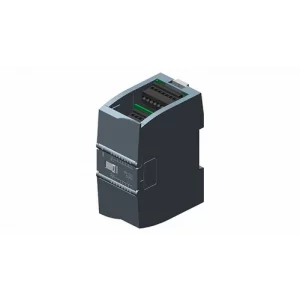

The SIMATIC S7‑1200 SM 1221 (6ES72211BH320XB0) is a compact digital input expansion module designed to enhance the c... Continue
The SM 1231 module (6ES7231‑5QF32‑0XB0) is a versatile analog input expansion designed for Siemens S7‑1200 PLCs,... Continue
The SIMATIC S7‑1200 SM 1231 TC (6ES7231‑5QD32‑0XB0) is a high-performance analog input module engineered for adv... Continue
The SM 1231 (6ES7231‑5PF32‑0XB0) is a versatile analog input module designed for the SIMATIC S7‑1200 PLC series,... Continue
The SM 1231 (6ES7231‑4HF32‑0XB0) is an 8-channel analog input module for the SIMATIC S7‑1200 series, optimized... Continue
The SIMATIC S7‑1200 SB 1231 (6ES7231‑4HA30‑0XB0) is a compact yet powerful single-channel analog input module de... Continue

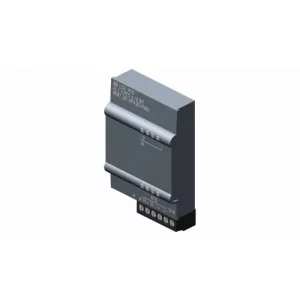

The SB 1231 RTD is a single-channel analog input module designed for precise temperature measurements using RTD sens... Continue
The SM 1231 RTD (6ES7231‑5PD32‑0XB0) is a high-precision 2-channel analog input module designed for Siemens S7â€... Continue

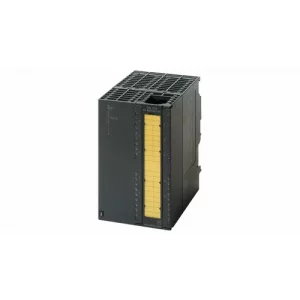

The SM 326 digital output module is a robust component designed for the SIMATIC S7‑300 PLC family, providing 16 tran... Continue
The SIMATIC S7‑1200 SM 1222 (6ES72221BF320XB0) is a high-performance digital output expansion designed to elevate yo... Continue
The SM 1222 (6ES72221HH32‑0XB0) is a robust digital output expansion unit for Siemens S7‑1200 PLCs, equipped with ... Continue

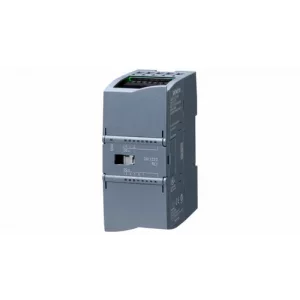

The SM 1222 (6ES7222‑1BH32‑1XB0) is a high-performance digital output expansion module tailored for the SIMATIC S7... Continue
